Hi-Giene Round Pendant
Australian-made and designed round pendant fitting for high hygiene and food processing applications.
This versatile and cost effective luminaire is a perfect choice for all applications that require a high degree of hygiene application.
It is available in a round pendant, round surface mount and round recessed fittings. Suitable for a wide range of applications from food processing, dairy and pharmaceutical.
Product details
- Australian-made and designed
- High quality driver and LED chips
- Aluminium housing
- Suitable for food processing applications
- Customisable to your project needs
- Design for retrofit options for existing housing available
- 5-year warranty
Applications
- Food processing and manufacturing plants,
- Food packaging facilities,
- Freezers including blast freezer applications,
- Chillers,
- Dairies,
- Abattoirs,
- Pharmaceutical facilities,
- Cool rooms,
- Warehouse & distribution centres.
HACCP Certified
We are extremely proud our Australian designed and made Hi-Giene Round Pendant light is HACCP Certified recognising them as a very well designed luminaires, that are well-sealed and easy to clean; perfect for the Australian food industry!
HACCP International is a renowned certification body specialising in the certification of food safe equipment, products and services that support the food industry.
LED
Illumination grade CREE LED light source.
LED Driver
High-end programmable Mean Well LED driver, provides excellent performance and lifespan.
Specifications
| HGR11P480I100M | HGR16P480I150M | HGR20P480I180M | HGR26P480I250M | |
|---|---|---|---|---|
| Item code | 34712 | 34711 | 34709 | 33832 |
| Nominal Wattage | 100W | 150W | 180W | 250W |
| AC input voltage | 220-240V, 50/60Hz | |||
| LED brand | Cree | |||
| Driver brand | Mean Well | |||
| Driver position | Integral | |||
| Rated current @240V | 1.06A | |||
| Operating temperature | 25°C Integral driver | |||
| Power factor (PF) | >0.95 | |||
| THD | <20% | |||
| Surge protection | 2kV (L-L), 4kV (L-E) | |||
| Leakage current | <0.75mA / 277VAC | |||
| Lumen output (+/-5%) | 11,339Lm | 15,811Lm | 20,411Lm | 26,352Lm |
| Luminaire efficacy (+/-5%) | 114lm/W | |||
| Luminaire classification | Class I | |||
| Light distribution type | Symmetrical | |||
| CRI | 80, SDCM>3 | |||
| CCT | 4000K (5000K optional) | |||
| Rating | IP66 | |||
| Control system | 0-10V dimming (DALI, motion sensor, smart control – optional) | |||
| Accessories | Safety lanyards (optional, recommended) | |||
| Housing material | Aluminium | |||
| Optics material | Injection moulded acrylic | |||
| Finish | White powder coating | |||
| Intelligent Control | Built-in microwave motion sensor (standalone & paired system), smart device based Bluetooth control system (optional) | |||
| Emergency Options | Manual test, self test & centralised monitoring | |||
| Lumen maintenance | >50,000 hours | |||
| Certifications | RCM, NSW Fair Trading, IPART, HACCP | |||
| Packaging type | 1 unit / carton | |||
The tolerance range of test data above is ±6%, but normally warm white is ±8%.
Dimensions
Detailed dimension drawings and polar diagrams are available from our team. Get in touch to discuss with our lighting experts.
Measurements and illustrations are approximate, do not scale.
| Hi-Giene Round Pendant | |
|---|---|
| Dimensions (mm) | 719 (diameter) x 456 (depth) |
| Weight | 12kg Net (14kg Gross) |

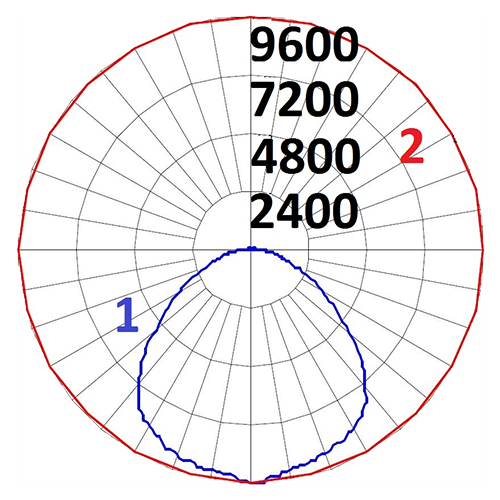

Photometric distribution
Average beam angle (50%): C 0º - C 180º.
C 0º - C 180º
