Hi-Giene Round Recess

Australian-made and designed round recess fitting for high hygiene and food processing applications.

This versatile and cost effective luminaire is a perfect choice for all applications that require a high degree of hygiene application.

It is available in a round pendant, round surface mount and round recessed fittings. Suitable for a wide range of applications from food processing, dairy and pharmaceutical.

Product details

Australian-made and designed
High quality driver and LED chips
Aluminium housing
Suitable for food processing applications
Customisable to your project needs
Design for retrofit options for existing housing available
5-year warranty

Applications

Food processing and manufacturing plants,
Food packaging facilities,
Freezers including blast freezer applications,
Chillers,
Dairies,
Abattoirs,
Pharmaceutical facilities,
Cool rooms,
Warehouse & distribution centres.

HACCP Certified

We are extremely proud our Australian designed and made Hi-Giene Round Recess light is HACCP Certified recognising them as a very well designed luminaires, that are well-sealed and easy to clean; perfect for the Australian food industry!

HACCP International is a renowned certification body specialising in the certification of food safe equipment, products and services that support the food industry.

LED

Illumination grade CREE LED light source.

LED Driver

High-end programmable Mean Well LED driver, provides excellent performance and lifespan.

Specifications

	HGR11R480R100M/WM	HGR16R480R150M/WM	HGR20R480R180M/WM	HGR26R480R250M/WM
Item code	34694	33975	34695	33785
Nominal Wattage	100W	150W	180W	250W
AC input voltage	220-240V, 50/60Hz
LED brand	Cree
Driver brand	Mean Well
Driver position	Remote (Integral also available)
Rated current @240V	1.06A
Operating temperature	-40°C to +50°C Remote driver (-40°C to +50°C Integral driver)
Power factor (PF)	>0.95
THD	<20%
Surge protection	2kV (L-L), 4kV (L-E)
Leakage current	<0.75mA / 277VAC
Lumen output (+/-5%)	11,339Lm	15,811Lm	20,411Lm	26,352Lm
Luminaire efficacy (+/-5%)	Up to 114lm/W
Luminaire classification	Class I
Light distribution type	Symmetrical
CRI	80
CCT	4000K (5000K optional)
Rating	IP66
Control system	0-10V dimming (DALI, motion sensor, smart control – optional)
Housing material	Aluminium
Optics material	Injection moulded acrylic
Finish	White powder coating
Intelligent Control	Built-in microwave motion sensor (standalone & paired system), smart device based Bluetooth control system (optional)
Emergency Options	Manual test, self test & centralised monitoring
Lumen maintenance	>50,000 hours
Certifications	RCM, HACCP
Packaging type	1 unit / carton

The tolerance range of test data above is ±6%, but normally warm white is ±8%.

Dimensions

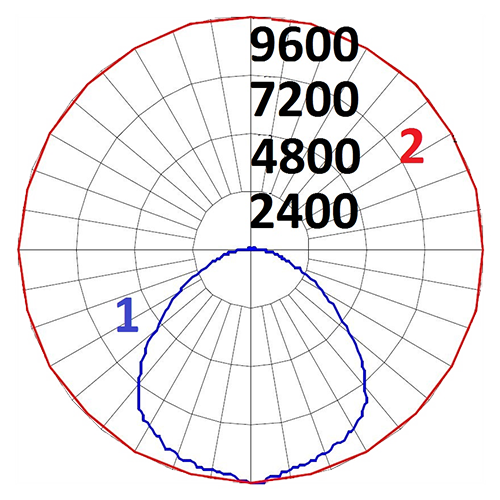

Detailed dimension drawings and polar diagrams are available from our team. Get in touch to discuss with our lighting experts.
Measurements and illustrations are approximate, do not scale.
