Solar Split System 30W

Highly efficient, robust and reliable with long life battery & adjustable panel.

The LTC Solar Split System is reliable and easy to install, ensuring safety with a separate solar collector to maximise battery life, an enduring adjustable panel, and longer operating hours, making it ideal for remote applications.

Product details

  • Motion detection
  • Daylight sensing
  • No wiring required
  • Zero energy cost
  • Long operating hours
  • IP65 Weatherproof
  • Battery and Solar Charger attached to the Light Unit
  • Light Distribution Type II (Optional Type I, III etc.)
  • Product can be customized to meet specific requirements
  • Spigot Size 60 mm (Solar Panel & Light Unit)

Split System – Set up your light and collector separately

The LTC Solar Split System features a separate solar collector allowing remote set-up to maximise location and sun collection. A large battery capacity, IP65 weatherproof, motion detection, daylight sensing, and long operating hours ensures the LTC Solar Split System meets Lighting Council recommendations.

Applications

  • Street Lighting
  • Park Lighting
  • Roadway Lighting
  • Fence Lighting
  • Pathway Lighting
  • Campus Lighting
  • Ramp Lighting
  • Pedestrian Lighting
  • Remote Area Lighting
  • Private Road Lighting
  • Farm & Ranch Lighting

Accessories

  • PWM Controller as standard – MPPT Optional
  • Optional Bird Spike available

ISO9001IP65

LED

Philips SMD3030 Illumination grade LED light source.

Philips


Solar panel

High-end 18V Monocrystalline Silicon panel with aluminium frame and long 25+ year lifespan.

Specifications

LTC Solar Split System lighting is available in 30W and 500K CCT with optional CCT 2700K, 3000K, 4000K & 6500K.

Light Unit Solar Split System 30W
Nominal Wattage 30W
Item code 112115
Light source Philips SMD3030
LED qty (pcs) 96
CCT 5000K (2700, 3000K, 4000K & 6500K optional)
Efficiency 170Lm/Watt
Luminous Flux 5100Lm
Operating temperature -10°C to +50°C
LED Lifespan >50,000 Hours
Housing material Die-cast Aluminium
IP Rating IP65
Battery capacity 66AH 12.6V Lithium battery
Light unit tilt 0° to 270°
Finish RAL 9016 Traffic White
Sensor Type Microwave
Sensor Detection Area 7m - 10m @ Light Mounting Height (6m - 10m)
Certifications ISO 9001:2015
Solar Panel
Maximum Power (Pmax) 150W
Open Voltage (Voc) 18V
Peak Current (Imp) 8.27A
Short Circuit Current (Isc) 9.06A
Maximum System Voltage 1000V DC
Solar Cell Type  Monocrystalline Silicon
Fuse Rate (A) 15A
Number of cells 36
Operating temperature -45°C to +85°C
Frame material  Aluminium Alloy
Solar panel lifespan >25 years
Battery
Battery type Li Battery
Voltage 12.6V
Battery Rating (AH) 66AH
Battery Rating (WH) 831Wh

Dimensions

Detailed dimension drawings, spacing and polar diagrams are available from our team. Get in touch to discuss with our lighting experts.
Measurements and illustrations are approximate, do not scale.

Light unit Solar panel
Dimensions (mm) 540 x 285 x 90 1320 x 666 x 35
Weight 9.4kg 14kg

How it works

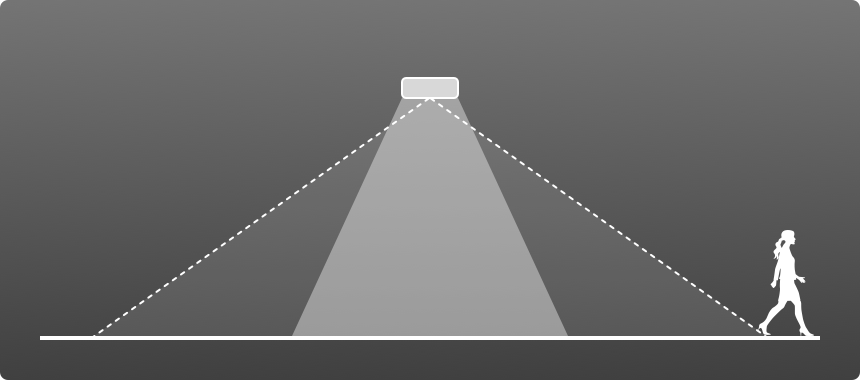

When the sun goes down the light turns on.

First 4 hours

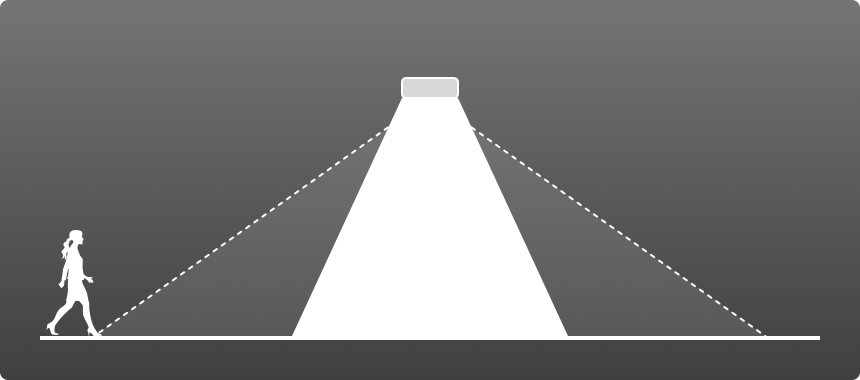

Motion detected, brightness 100%

When motion is detected, brightness increases to 100%.

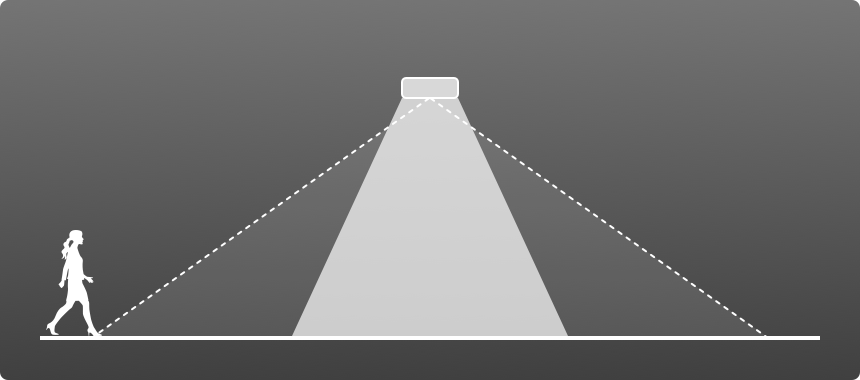

No motion detected, brightness 50%

After 30 seconds without motion, brightness reduces to 50%.

hours 5-9

Motion detected, brightness 70%

When motion is detected, brightness increases to 70%.

No motion detected, brightness 40%

After 30 seconds without motion, brightness reduces to 40%.

hours 9-12

Motion detected, brightness 50%

When motion is detected, brightness increases to 50%.

No motion detected, brightness 30%

After 30 seconds without motion, brightness reduces to 30%.
